- 2.4GHz AFHDS (Automatic Frequency Hopping Digital System), developed specifically for all radio control models, has strong active and passive anti-interference capabilities, extremely low power consumption, and high receiver sensitivity. After years of market user verification, many RC enthusiasts favor.
- FLY 3-Channel Applicable models: RC Car, RC Boat. SKY
- DSC interface can output PPM connection simulator dongle(not including USB cable)
- Large-size Display: HTM blue film negative display, LCD white backlight
- Note that FS-GT3B only supports AFHDS series receivers, such as FS-GR3E and FS-GR3F. FS-GT3B is not compatible with AFHDS_2A series receivers

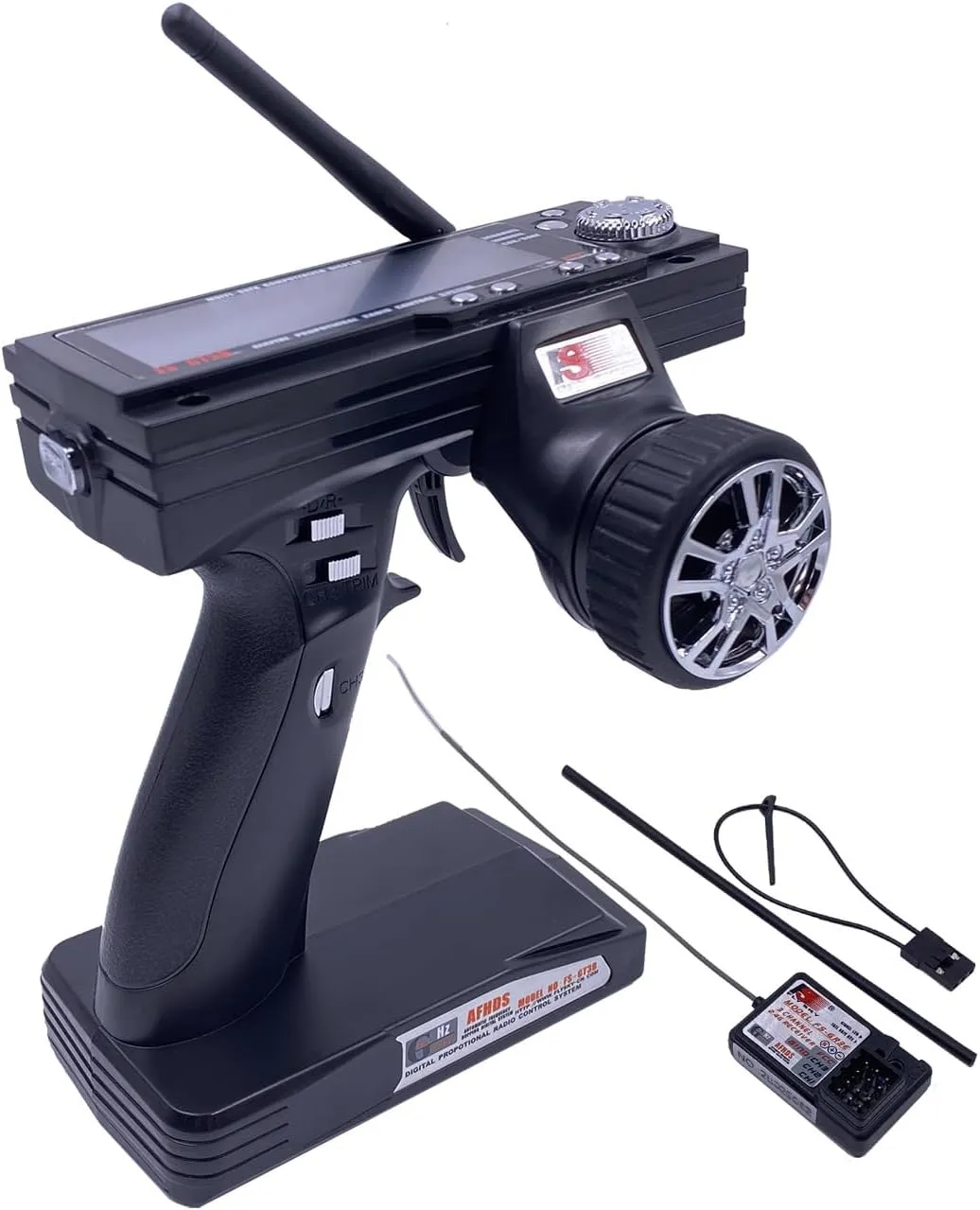

Alaohu FS-GT3B 3 Channels RC Transmitter and Receiver FS-GR3E 2.4GHz AFHDS Radio Control System
FS-GT3B is a 3-channel gun type transmitter build for cars and boats. It features the AFHDS protocol, backlit LCD screen, clean and clear interface and a full-angle gain antenna.
Note that FS-GT3B only supports AFHDS series receivers, such as FS-GR3E and FS-GR3F.
FS-GT3B is not compatible with AFHDS_2A series receivers.
Description:
Item: FS-GT3B RC Transmitter
Product Model: FS-GT3B
Channels: 3
Applicable models: RC Car, RC Boat
Wireless frequency: 2.4GHz
Transmission power: <20 dBm
Wireless protocol: AFHDS
Range: 100 ～ 200m (ground)
Channel resolution: 1024
Battery: 1.5AA * 8 (Delivery without batteries)
Charging port: None
Low voltage alarm: <9V
Antenna type: external single antenna
Large-size Display: HTM blue film negative display, LCD white backlight
Data port:PPM (DSC interface can output PPM connection simulator dongle,not included the cable)
Temperature range: 0 ℃ — 60 ℃
Humidity range: 20% -95%
Online update: No
Color: Black
Dimensions: 6.10*4.92*10.63 inch, 155 * 125 * 270mm
Weight: 14 oz 397g
Certification: CE, FCC ID: N4ZFLYSKYGT3B
FS-GR3E RC Receiver
Product Model: FS-GR3E
PWM channels: 3
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS
Range: 100 ～ 200m (ground)
Antenna type: single antenna (150mm)
Power: 4.2-6.5V
RSSI: Not supported
Data port: PWM (FS-GR3E does not support PPM output)
Temperature range: 0 ℃ — 60 ℃
Humidity range: 20% -95%
Online update: No
Dimensions: 35 * 22 * 12 mm
Weight: 5 g
Package Included:
FS-GT3B Transmitter *1
FS-GR3E Receiver *1
Bind Cable *1
Delivery without batteries
